Default 05 STS Parking Brake Assembly

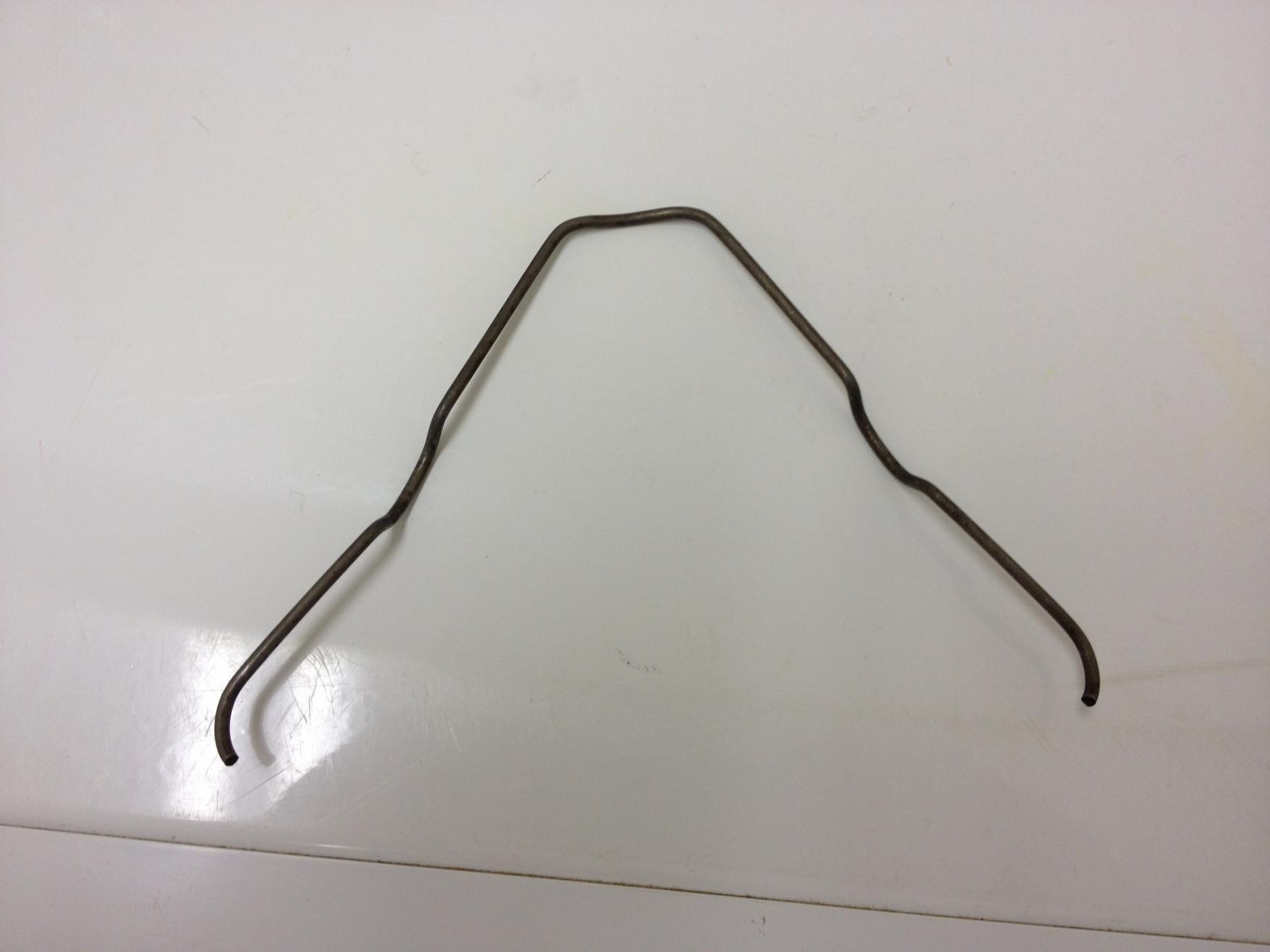

Hello, Gents. I had to replace a couple of wheels studs on the L/R side of the Cadi. Now my issue is trying to get the parking brake assembly back on properly. There is a piece of wire that looks sort of like a spring and it seems that it goes on the inside part of the parking brake shoes. I am so lost and can't for my life figure out where this piece goes. Any help will be highly appreciated.
Attached Thumbnails 05 STS Parking Brake Assembly-photo.jpg
