1999 Cadillac STS, transmission & hidden main sump drain plug

  #11
Old 09-01-2009, 04:06 PM
99STSGUY's Avatar
Senior Member
Thread Starter
Join Date: Oct 2008
Location: S.Florida
Posts: 110
Default

Hi guys, ok im just in from outside. did a fluid,filter,gasket change today. This is what im up with. Upon draining i removed pan and to me i believe there was minor debri in pan, one section thats it. Magnet had this like silver cake material on it. I have took some pics if anyone wants to see. I wanted to note that i did not pull the hidden plug on the side...I did this on purpose as to slowly introduce the new fluid into the tranny then maybe in about a month or two, change it again, and pull the plug...please post any replies or input. I can say upon starting up and shifting into gears it was alomst if the car was BRAND NEW!! lol. now after a few test runs it did seem to harshen up a bit..very minor. but in all i think it was succesfull and hope all stays well into future here.

  #12
Old 09-02-2009, 10:44 AM
rickyd's Avatar
Tech Certified Members
Join Date: Jul 2007
Location: pennsylvania
Posts: 1,319
Default

lucas, lucas, lucas ! i didnt see that mentioned
rickyd

  #13
Old 09-08-2009, 10:14 PM
jons95sls's Avatar
Junior Member
Join Date: Aug 2009
Posts: 18
Default

what kind of lucas do you recomend?

  #14
Old 09-09-2009, 11:02 AM
92_Daddylac's Avatar
Tech Certified Members
Join Date: Nov 2006
Location: Columbus Ne
Posts: 407
Default

get the bottle that is white and says lucas transmision fluid. it will say on the bottle it will stop leaks help shift firmer etc. Cant miss it it will be in the same section where you would get octane boost, powersteering, brakefluid,and oil treatments. if not ask the sales clerk they will know. its like $12-$13 for the bottle. i just put some in a couple of weeks ago and have already noticed some improved shifts. it was a lil slow on shifting at times and now its more dead on. Great stuff, you can also get the oil treatment by lucas which helps on cold starts and keeps the top part of the engine better lubricated.


Last edited by 92_Daddylac; 09-09-2009 at 11:05 AM.
  #15
Old 09-09-2009, 09:33 PM
stomper's Avatar
Tech Certified Members
Join Date: Jun 2007
Posts: 2,701
Default

Originally Posted by 99STSGUY
Hi guys, ok im just in from outside. did a fluid,filter,gasket change today. This is what im up with. Upon draining i removed pan and to me i believe there was minor debri in pan, one section thats it. Magnet had this like silver cake material on it. I have took some pics if anyone wants to see. I wanted to note that i did not pull the hidden plug on the side...I did this on purpose as to slowly introduce the new fluid into the tranny then maybe in about a month or two, change it again, and pull the plug...please post any replies or input. I can say upon starting up and shifting into gears it was almost if the car was BRAND NEW!! lol. now after a few test runs it did seem to harshen up a bit..very minor. but in all i think it was successful and hope all stays well into future here.


post the picture. how much silver metal are we looking at?

yes, re-service again in about 1,000 miles; dont forget to add LUCAS again.



.

  #16
Old 09-12-2009, 04:53 PM
99STSGUY's Avatar
Senior Member
Thread Starter
Join Date: Oct 2008
Location: S.Florida
Posts: 110
Default

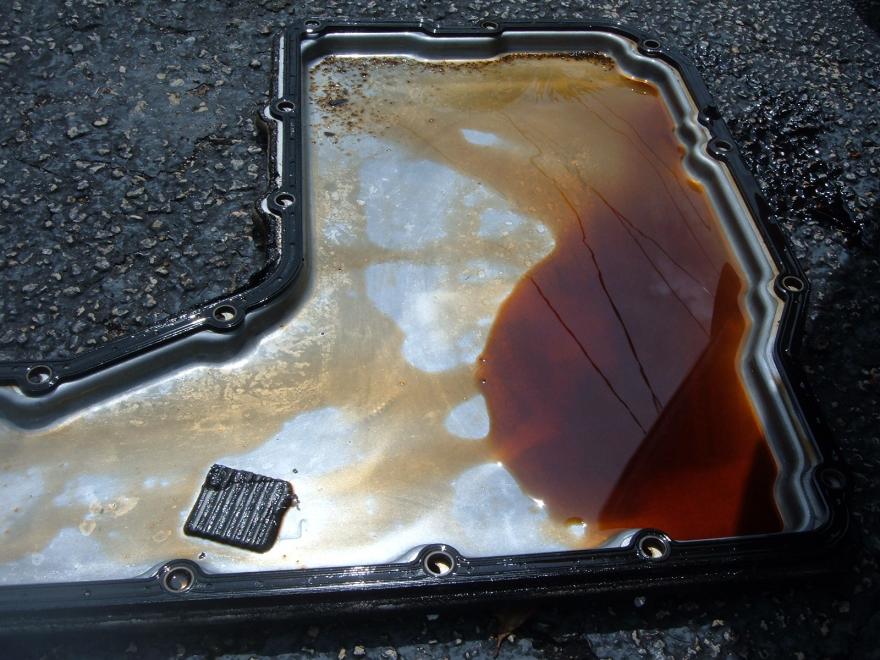

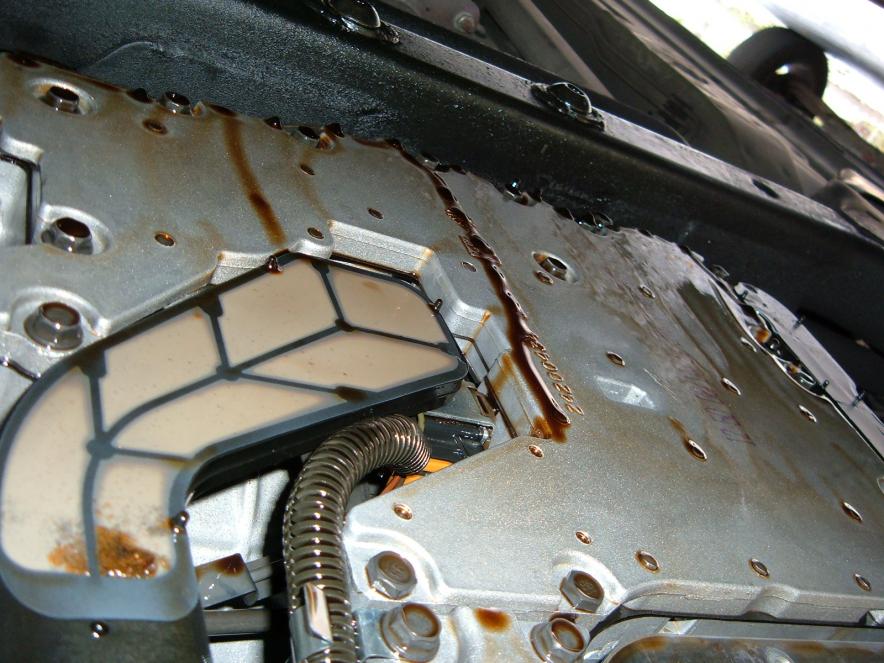

Heres a pic of mag/pan. I put 500 miles since change, shifts are still kinda same-bit firm or not as smooth if you will. but the transition from N to D drive very very smooth. but D to N kinda rough...anyway i will get the lucas in absolutely. I saw two of them one was one mentioned above and the other lucas which said to use if tranny was in operating order meaning no slippage or leaks. was like dollar less it said did almost same as other one, renews fluid, clutches, conditions, shifts..etc..not geared toward slippage or leaks thou..any experience with that?

Attached Thumbnails 1999 Cadillac STS, transmission & hidden main sump drain plug-dscf1782.jpg   1999 Cadillac STS, transmission & hidden main sump drain plug-dscf1789.jpg
  #17
Old 09-13-2009, 07:12 AM
rickyd's Avatar
Tech Certified Members
Join Date: Jul 2007
Location: pennsylvania
Posts: 1,319
Default

Originally Posted by 99STSGUY
Heres a pic of mag/pan. I put 500 miles since change, shifts are still kinda same-bit firm or not as smooth if you will. but the transition from N to D drive very very smooth. but D to N kinda rough...anyway i will get the lucas in absolutely. I saw two of them one was one mentioned above and the other lucas which said to use if tranny was in operating order meaning no slippage or leaks. was like dollar less it said did almost same as other one, renews fluid, clutches, conditions, shifts..etc..not geared toward slippage or leaks thou..any experience with that?
considering the miles on your sts 99, i'd use the lucas mentioned above. spend the extra buck....XD imo things look pretty norm.... (pics)

rickyd

  #18
Old 10-11-2009, 04:15 PM
99STSGUY's Avatar
Senior Member
Thread Starter
Join Date: Oct 2008
Location: S.Florida
Posts: 110
Default

Just about ready in a few days do fluid change again, Just vaguely remember, can anyone shed some light on where to find that "internal drain plug" If someone has a pic it'd be great! thanks

  #19
Old 10-12-2009, 01:02 AM
rickyd's Avatar
Tech Certified Members
Join Date: Jul 2007
Location: pennsylvania
Posts: 1,319
Default

Originally Posted by 99STSGUY
Just about ready in a few days do fluid change again, Just vaguely remember, can anyone shed some light on where to find that "internal drain plug" If someone has a pic it'd be great! thanks
if your talkin trans 99, i took old fluid out thru the dip stick sleeve. a little pump, or a baster type thing with a long small rubber hose. havent found a "internal plug" ....dont think there is one, and have not looked... if you know of one, pass it on. Lucas er up my friend. hows it goin for you?
rickyd


Last edited by rickyd; 10-12-2009 at 08:29 AM.
  #20
Old 10-12-2009, 07:06 AM
Adams' Apple's Avatar
Tech Certified Members
Join Date: Sep 2009
Location: Duncanville, Texas
Posts: 409
Default

This is an old thread, but for those who want to know, the main sump drain plug is over by the shift linkage(driver side) side of the trans. It is visible with the lower pan removed. It takes a 7/16" socket...just a regular 1/8" pipe plug. I can get a pic and post it later...
